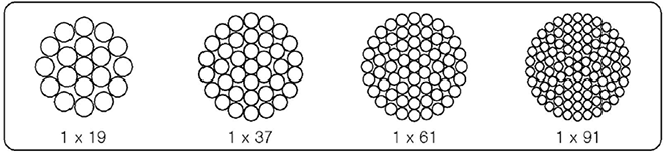

| Composition of Stainless Cable |
 |
|
| Stainless Cable for Structures |
|
|
|
1×19 Spiral Cable
1×(1+6+12) |
 |
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breaking load kN (Ton) |
Modules of Elasticity
(kN/㎟) |
Weight
(kg/m) |
| AISI 316 |
| 5 |
1.00 |
14.9 |
20.6(2.1) |
130±10 |
0.125 |
| 6 |
1.20 |
21.5 |
29.4(3.0) |
130±10 |
0.180 |
| 8 |
1.60 |
38.2 |
52.9(5.4) |
130±10 |
0.320 |
| 10 |
2.00 |
59.7 |
82.3(8.4) |
130±10 |
0.500 |
| 12 |
2.40 |
86.0 |
119(12.1) |
130±10 |
0.720 |
| 14 |
2.80 |
117.0 |
139(14.2) |
130±10 |
0.980 |
|
|
|
|
|
1×37 Spiral Cable
1×(1+6+12+18) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breaking load kN (Ton) |
Modules of Elasticity
(kN/㎟) |
Weight
(kg/m) |
| AISI 316 |
| 16 |
2.286 |
151 |
190(19.4) |
130±10 |
1.25 |
| 18 |
2.571 |
191 |
241(24.6) |
130±10 |
1.58 |
| 20 |
2.857 |
236 |
297(30.3) |
130±10 |
1.96 |
| 22 |
3.143 |
281 |
355(36.2) |
130±10 |
2.34 |
| 24 |
3.428 |
335 |
422(43.1) |
130±10 |
2.78 |
| 26 |
3.714 |
393 |
496(50.6) |
130±10 |
3.27 |
| 28 |
4.000 |
456 |
575(58.7) |
130±10 |
3.79 |
|
|
|
|
 |
1×61 Spiral Cable
1×(1+6+12+18+24) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breaking load kN (Ton) |
Modules of Elasticity
(kN/㎟) |
Weight
(kg/m) |
| AISI 316 |
| 30 |
3.36 |
545 |
688(70.2) |
130±10 |
4.46 |
| 32 |
3.60 |
620 |
782(79.8) |
130±10 |
5.08 |
| 34 |
3.81 |
699 |
882(90.0) |
130±10 |
5.73 |
| 36 |
4.04 |
784 |
989(100.9) |
130±10 |
6.43 |
|
|
|
|
 |
1×91 Spiral Cable
1×(1+6+12+18+24+30) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breaking load kN (Ton) |
Modules of Elasticity
(kN/㎟) |
Weight
(kg/m) |
| AISI 316 |
| 38 |
3.45 |
850 |
1073(109.5) |
130±10 |
6.96 |
| 40 |
3.64 |
946 |
1194(121.8) |
130±10 |
7.71 |
| 42 |
3.82 |
1042 |
1315(134.2) |
130±10 |
8.50 |
| 45 |
4.09 |
1195 |
1507(153.8) |
130±10 |
10.00 |
|
|
|
|
|

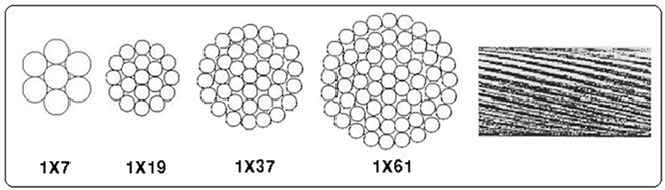

| Composition of Spiral Cable |
 |
|
| Module of Elasticity |
|
|
| ST1470 |
ST1570 |
ST1670 |
ST1960 |
| 140±5kN/㎟ |
150±5kN/㎟ |
160±5kN/㎟ |
170±5kN/㎟ |
|
|
|
 |
|
|
|
|
1×19 Spiral Cable
1×(1+6+12) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breakingload kN (ton) |
Weight
(kg/m) |
| ST1470 |
ST1570 |
ST1670 |
| 14 |
2.80 |
117 |
161(16.4) |
172(17.5) |
180(18.4) |
0.96 |
| 16 |
3.20 |
153 |
210(21.4) |
224(22.8) |
236(24.0) |
1.25 |
| 18 |
3.60 |
193 |
265(27.1) |
284(28.9) |
298(30.4) |
1.59 |
| 20 |
4.00 |
239 |
328(33.4) |
350(35.7) |
368(37.6) |
1.96 |
| 22.4 |
4.48 |
300 |
411(41.9) |
439(44.8) |
462(47.1) |
2.46 |
| 25 |
5.00 |
373 |
512(52.2) |
547(55.8) |
576(58.7) |
3.06 |
|
|
|
|
|
|
1×37 Spiral Cable
1×(1+6+12+18) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breakingload kN (ton) |
Weight
(kg/m) |
| ST1470 |
ST1570 |
ST1670 |
| 20 |
2.86 |
240 |
324(33.1) |
346(35.3) |
364(37.1) |
1.96 |
| 22.4 |
3.20 |
301 |
407(41.5) |
434(44.2) |
456(46.5) |
2.46 |
| 25 |
3.58 |
375 |
507(51.7) |
540(55.1) |
568(58.0) |
3.07 |
| 28 |
4.00 |
470 |
636(64.8) |
678(69.1) |
713(72.7) |
3.85 |
| 30 |
4.29 |
540 |
730(74.4) |
778(79.3) |
819(83.5) |
4.42 |
| 31.5 |
4.50 |
595 |
805(82.1) |
858(87.5) |
902(92.0) |
4.87 |
| 33.5 |
4.79 |
673 |
910(92.8) |
970(98.9) |
1020(104) |
5.51 |
| 35.5 |
5.08 |
756 |
1020(104) |
1090(111) |
1150(117) |
6.19 |
|
|
|
|
|
1×61 Spiral Cable
1×(1+6+12+18+24) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breakingload kN (ton) |
Weight
(kg/m) |
| ST1470 |
ST1570 |
ST1670 |
ST1960 |
| 28 |
3.14 |
474 |
633(64.5) |
674(68.7) |
709(72.3) |
809(82.5) |
3.89 |
| 30 |
3.36 |
545 |
726(74.1) |
773(78.9) |
814(83.0) |
929(94.7) |
4.46 |
| 31.5 |
3.53 |
600 |
801(81.6) |
853(86.9) |
897(91.5) |
1024(104) |
4.92 |
| 33.5 |
3.75 |
679 |
906(92.3) |
964(98.3) |
1010(103) |
1158(118) |
5.56 |
| 35.5 |
3.98 |
762 |
1020(104) |
1080(110) |
1140(116) |
1300(133) |
6.25 |
| 37.5 |
4.2 |
851 |
1130(116) |
1210(123) |
1270(130) |
1451(148) |
6.97 |
| 40 |
4.48 |
968 |
1290(132) |
1370(140) |
1450(147) |
1651(168) |
7.93 |
| 42 |
4.66 |
1042 |
1393(142) |
1480(151) |
1559(159) |
1820(186) |
8.75 |
| 45 |
5.04 |
1230 |
1630(167) |
1740(177) |
1830(187) |
2089(213) |
10 |
|
|
|
|
|
1×91 Spiral Cable
1×(1+6+12+18+24+30) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breakingload kN (ton) |
Weight
(kg/m) |
| ST1470 |
ST1570 |
ST1670 |
| 40 |
3.67 |
962 |
1270(129) |
1350(138) |
1420(145) |
7.92 |
| 42.5 |
3.9 |
1090 |
1430(146) |
1530(156) |
1600(164) |
8.94 |
| 45 |
4.13 |
1220 |
1600(164) |
1710(174) |
1800(183) |
10 |
| 47.5 |
4.36 |
1360 |
1790(182) |
1910(194) |
2000(204) |
11.2 |
| 50 |
4.59 |
1500 |
1980(202) |
2110(215) |
2220(226) |
12.4 |
| 53 |
4.86 |
1690 |
2230(227) |
2370(242) |
2490(254) |
13.9 |
| 56 |
5.14 |
1880 |
2490(253) |
2650(270) |
2790(284) |
15.5 |
|
|
|
|
 |
1×127 Spiral Cable
1×(1+6+12+18+24+30+36) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breakingload kN (ton) |
Weight
(kg/m) |
| ST1470 |
ST1570 |
ST1670 |
| 45 |
3.52 |
1240 |
1610(164) |
1720(175) |
1810(184) |
10.2 |
| 47.5 |
3.71 |
1380 |
1800(183) |
1910(195) |
2010(205) |
11.3 |
| 50 |
3.91 |
1530 |
1990(203) |
2120(216) |
2230(228) |
12.6 |
| 53 |
4.14 |
1710 |
2240(228) |
2380(243) |
2510(256) |
14.1 |
| 56 |
4.38 |
1910 |
2500(255) |
2660(271) |
2800(285) |
15.7 |
| 60 |
4.69 |
2200 |
2870(292) |
3050(311) |
3210(328) |
18.1 |
| 63 |
4.93 |
2420 |
3160(322) |
3370(343) |
3540(361) |
19.9 |
|
|
|
|
 |
1×169 Spiral Cable
1×(1+6+12+18+24+30+36+42) |
|
Nominal
Strand Dia.
(㎜) |
Outside
Strand Dia.
(㎜) |
Metallic
Cross Area
(㎟) |
Min.breakingload kN (ton) |
Weight
(kg/m) |
| ST1470 |
ST1570 |
ST1670 |
| 60 |
4.08 |
2210 |
2850(290) |
3030(309) |
3190(325) |
18.1 |
| 63 |
4.28 |
2440 |
3140(320) |
3340(341) |
3510(358) |
20 |
| 65 |
4.42 |
2590 |
3340(341) |
3560(363) |
3740(381) |
21.3 |
| 67 |
4.56 |
2760 |
3550(362) |
3780(385) |
3970(405) |
22.6 |
| 69 |
4.69 |
2920 |
3760(384) |
4010(409) |
4210(430) |
24 |
| 71 |
4.83 |
3100 |
3990(406) |
4240(433) |
4460(455) |
25.4 |
| 73 |
4.96 |
3270 |
4210(430) |
4480(457) |
4720(481) |
26.8 |
| 75 |
5.1 |
3450 |
4450(454) |
4730(483) |
4980(508) |
28.3 |
| 77.5 |
5.27 |
3690 |
4750(484) |
5050(515) |
5310(542) |
30.2 |
| 80 |
5.44 |
3930 |
5060(549) |
5390(549) |
5660(577) |
32.2 |
|
|
|
◎ 표시규격은  CABLE SYSTEMS 표준규격임 |
|
